Description

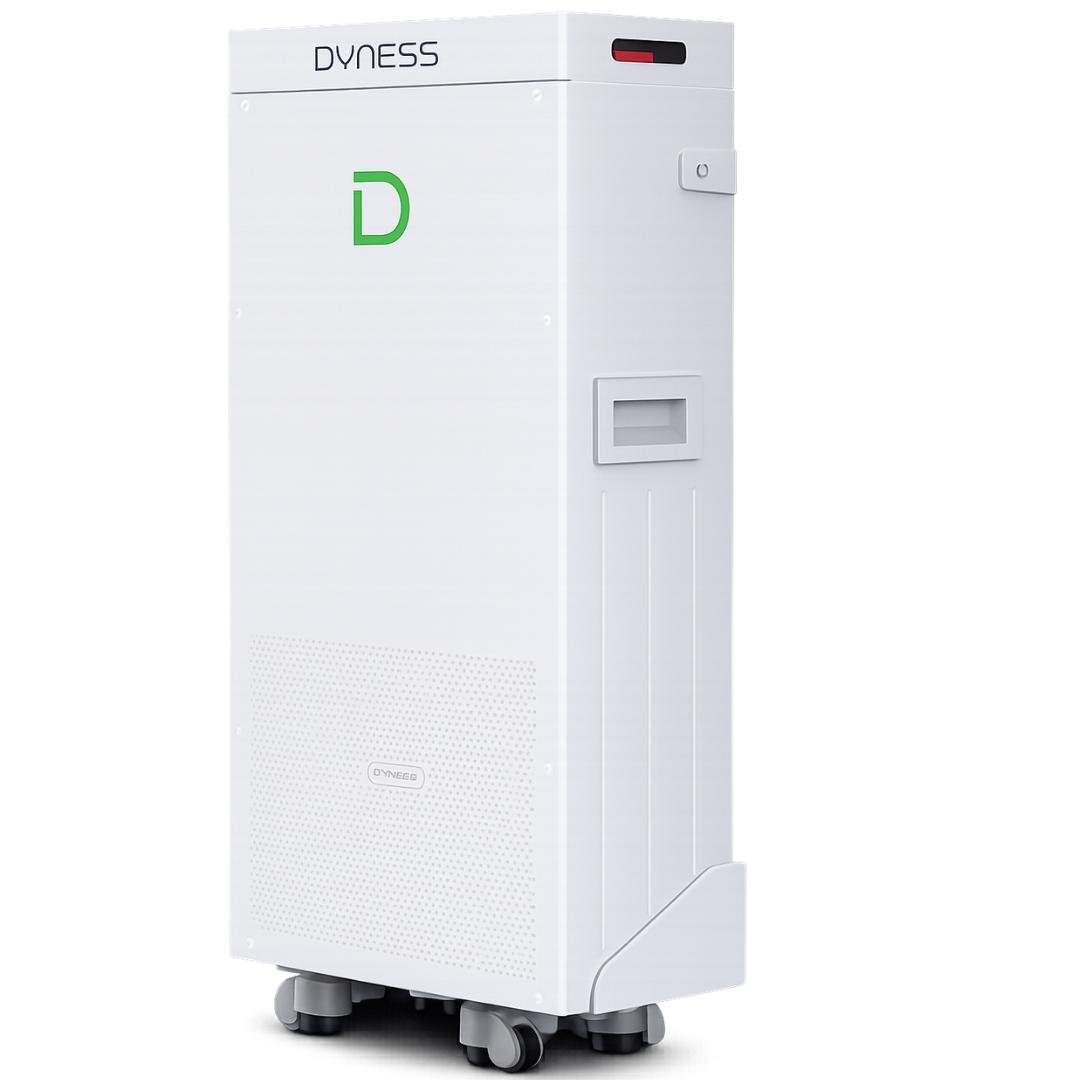

Dyness PowerBrick MAX 16.08kWh Lithium Battery

The Dyness PowerBrick MAX 16.08kWh Lithium Battery is a high-capacity lithium battery designed for residential energy storage and compatible solar backup applications. Using lithium iron phosphate (LiFePO₄) technology, it provides approximately 16.08kWh of nominal energy storage in a 51.2V battery system.

Its high capacity, integrated battery management system and expandable configuration make it suitable for installations requiring substantial energy storage.

Key Features

• 16.076kWh nominal energy: High-capacity storage for compatible solar energy systems.
• LiFePO₄ battery technology: Lithium iron phosphate chemistry.
• 51.2V, 314Ah: Designed for compatible low-voltage battery systems.
• Up to 95% depth of discharge: Manufacturer-rated DOD.
• High charge and discharge current: Maximum 200A charge and discharge current, subject to manufacturer operating conditions.
• Expandable capacity: Supports up to 50 units in parallel.
• Smart battery management: Built-in BMS for battery monitoring and protection.
• Remote monitoring: Integrated Wi-Fi and app-based monitoring, according to the manufacturer’s specifications.
• Integrated fire protection: Built-in aerosol fire-extinguishing system.
• Flexible installation: Floor-mounted or wall-mounted installation, following manufacturer requirements.

Technical Specifications

• Brand: Dyness
• Model: PowerBrick MAX
• Battery chemistry: LiFePO₄
• Nominal energy: 16.076kWh
• Nominal capacity: 314Ah
• Nominal voltage: 51.2V
• Operating voltage range: 44.8–57.6V
• Recommended charge/discharge current: 140A
• Maximum charge current: 200A
• Maximum discharge current: 200A
• Peak discharge current: 300A for 2 minutes at 25°C
• Maximum charge power: 10.24kW
• Maximum discharge power: 10.24kW
• Depth of discharge: Up to 95%
• Cycle life: At least 8,000 cycles under the specified manufacturer test conditions
• Communication: CAN / RS485
• Monitoring: Wi-Fi and app functionality
• Protection rating: IP20
• Charging temperature: 0°C to +55°C; optional low-temperature charging configuration may be available
• Discharging temperature: −20°C to +55°C
• Dimensions (W × D × H): 435 × 233 × 857mm
• Weight: Approximately 116kg
• Maximum parallel expansion: 50 units
• Maximum nominal system capacity: Approximately 803.8kWh
• Warranty: Manufacturer’s stated 10-year warranty, subject to applicable terms

Applications

The Dyness PowerBrick MAX 16.08kWh Lithium Battery is suitable for compatible residential solar energy storage and backup systems requiring higher battery capacity. Multiple units can be connected in parallel to expand storage as energy requirements increase.

Before installation, verify compatibility with the selected inverter, battery communication protocol, charge settings, protection equipment and installation requirements.

Buy Dyness PowerBrick MAX 16.08kWh Lithium Battery from Globus Solar LTD

Globus Solar LTD supplies solar energy solutions for residential and commercial applications. Contact us for current pricing, availability and assistance selecting a suitable inverter and battery configuration.

We serve customers in Thika, Nairobi and surrounding areas, and welcome product enquiries from across Kenya.
