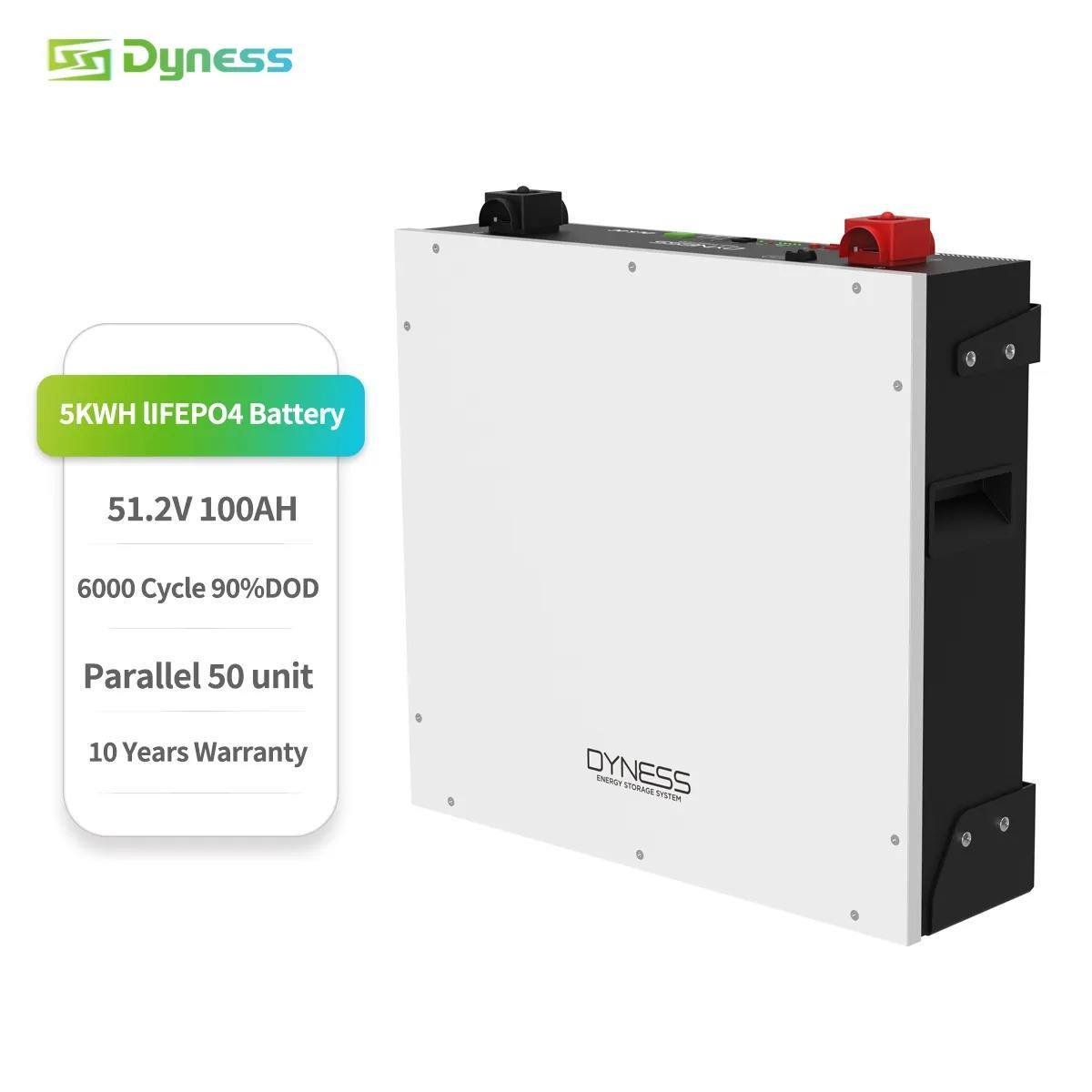

Dyness DL5.0C 5.12kWh Lithium Battery

The Dyness DL5.0C 5.12kWh lithium battery is designed for residential and small commercial energy storage. It uses lithium iron phosphate (LiFePO₄) technology and provides 5.12kWh of nominal energy in a 51.2V, 100Ah battery module.

Its expandable design makes it suitable for compatible solar installations where additional energy storage may be required as power needs grow.

Key Features

• 5.12kWh nominal energy: Provides storage for compatible solar energy systems.
• LiFePO₄ battery chemistry: Lithium iron phosphate technology for energy storage.
• 51.2V, 100Ah: Designed for compatible 48V-class battery systems.
• Expandable capacity: Supports up to 50 units in parallel, with a stated maximum nominal capacity of 256kWh.
• 90% depth of discharge: Manufacturer-rated DOD under the applicable datasheet conditions.
• High discharge capability: Maximum continuous discharge current of 100A.
• Flexible installation: Supports wall-mounted, floor-standing and stacked installation arrangements, subject to manufacturer requirements.
• Communication interfaces: CAN, RS485 and RS232.
• Optional monitoring: App monitoring and remote upgrades are available with supported configurations.

Technical Specifications

• Brand: Dyness
• Model: DL5.0C
• Battery type: LiFePO₄
• Nominal energy: 5.12kWh
• Nominal capacity: 100Ah
• Nominal voltage: 51.2V
• Operating voltage: 44.8–57.6V
• Recommended charge/discharge current: 50A
• Maximum charge current: 75A
• Maximum continuous discharge current: 100A
• Peak charge/discharge current: 110A for 15 seconds
• Depth of discharge: Up to 90%, according to the referenced datasheet
• Cycle life: At least 6,000 cycles under the manufacturer’s stated test conditions
• Communication: CAN / RS485 / RS232
• Protection rating: IP20
• Charging temperature: 0°C to +55°C; lower-temperature charging may be supported by versions with a heating function
• Discharging temperature: −20°C to +55°C
• Dimensions (W × D × H): Approximately 558 × 545 × 150mm
• Weight: Approximately 50–54kg, depending on the datasheet revision
• Parallel expansion: Up to 50 units

Applications

The Dyness DL5.0C 5.12kWh lithium battery can be used in compatible residential and small commercial solar energy storage systems, including hybrid and off-grid installations. Multiple batteries can be connected in parallel to increase storage capacity, provided the inverter, cabling, protection equipment and battery configuration meet manufacturer requirements.

Buy Dyness DL5.0C from Globus Solar LTD

Contact Globus Solar LTD for current pricing, availability and assistance selecting a compatible inverter and battery configuration. We serve customers in Thika, Nairobi and surrounding areas, and welcome enquiries from across Kenya.

Compatibility note: Confirm the exact battery revision and inverter compatibility before purchase and installation.
