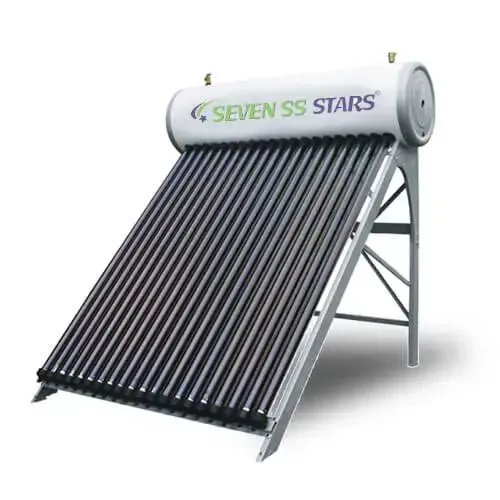

350L Low Pressure Solar Water Heater Overview
-
High Capacity: Provides ample hot water for large families (10+ members), guesthouses, lodges, or small businesses like salons and restaurants.
-
Low Pressure System: Engineered for gravity-fed applications (max 0.05Mpa), making it ideal for areas with unstable mains pressure or where header tanks are used.
-
Efficient Solar Collection: Features advanced evacuated glass tubes with high absorption rates to ensure hot water even during cloudy conditions.
-
Excellent Heat Retention: High-density polyurethane foam insulation minimizes heat loss overnight.
-
Durable Build: Constructed with a robust inner tank and a powder-coated frame for long-term resistance to weather and corrosion.
Technical Specifications
| Component | Specification |
|---|---|
| Tank Capacity | 350 Litres |
| System Type | Non-Pressurized (Low Pressure / Gravity Feed) |
| Max Working Pressure | 0.05 Mpa |
| Inner Tank Material | Anti-corrosion coated / Enamel-lined steel |
| Insulation | 50-65mm High-Density Polyurethane Foam |
| Outer Casing | Corrosion-resistant colored steel |
| Tube Type | Three-Target Evacuated Glass Vacuum Tubes (58mm x 1800mm) |
| Tube Quantity | 30 – 36 Tubes (depending on configuration) |
| Absorption Rate | 93% – 96% |
| Connections | G 1/2″ or 3/4″ Inlet / Outlet / Vent |
| Full System Weight | Approx. 400 – 450 kg (when full) |
350L Low Pressure Solar Water Heater Installation Summary
-
Mounting: Secure the frame on a roof or stand facing the equator (North in the Southern Hemisphere, South in the Northern Hemisphere). Ensure the surface can support the full weight (approx. 450kg).
-
Tank Placement: Position the tank level on the frame.
-
Tube Installation: Lubricate tube ends and insert gently into the tank seals with a twisting motion. Secure the bottom into the frame holder.
-
Plumbing: Connect to a header tank. Crucial: Never connect directly to high-pressure mains. Install vacuum breakers and a pressure control valve.
-
Final Check: Fill with water before sun exposure to prevent tube damage. Check all connections for leaks.
Maintenance
-
Clean glass tubes every 6-12 months to remove dust.
-
Annually check pressure relief valves (discharge water is hot).
-
Inspect for condensation inside tubes (indicating a broken vacuum).
